Мы производим и экспортируем все виды вспомогательного оборудования и материалов для печати, таких как машины для монтажа форм, машины для изготовления форм, машины для мойки анилоксовых валов, машины для мойки форм, машины для перемотки этикеток, жидкости для очистки растворителем, флексографские пластины, цилиндры, анилоксовые валы и т. Д. .

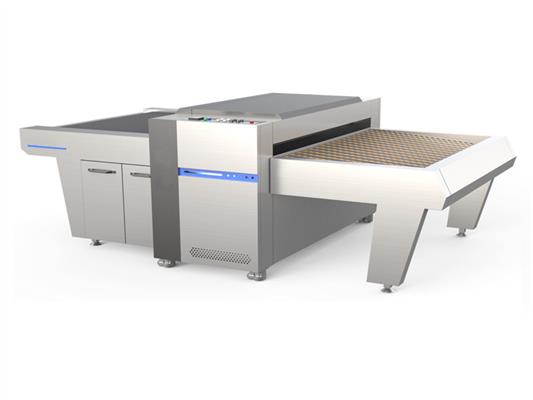

Automatic plate washing machine

★The quick and gentle cleaning process is fully automatic and leaves the plates 100% clean and dry within very short time. ★Manual cleaning is easy to damage the printing plate. From a health and safety perspective, this approach is time-consuming and often problematic. The operator's main energy should be devoted to the printing process and printing preparation. ★All types of ink are possible, and this machine is designed for environmentally friendly cleaning. ★The machine is made of stainless steel casing, which is more high-grade and durable. ★After the printing operation is complete, all the printing plates are placed on the conveyor belt, and the printing plate is automatically brought into the whole cleaning process. ★The washing and rinsing series provides an automatic two-stage cleaning process. The first stage is liquid cleaning and the second stage is rinsing with water. ★The liquid is provided with a circulating filtration function. ★The unique combination of a specially manufactured soft brush and a special cleaning solution ensures an efficient and gentle plate cleaning process. ★Water will remove the ink residue and cleaning fluid. ★After hot air drying, the plate can be 100% clean and dry, and can be reused immediately. The whole process only takes a few minutes.

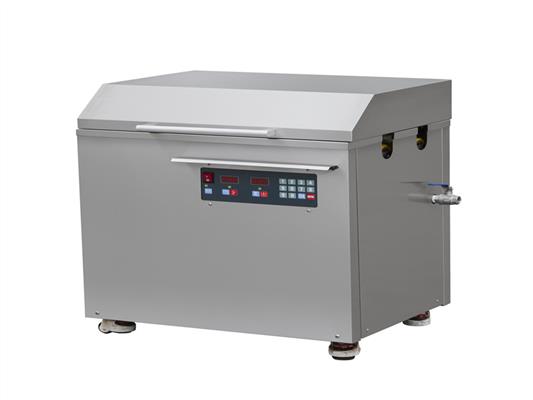

Anilox roller cleaning machine

Features: The anilox roller cleaning machine is equipped with a stepless speed drive, which allows the anilox roller to be cleaned to rotate in a washing tank that emits high-frequency signals. The vibration from the high-frequency signal and the continuous rotation of the roller body make the liquid tiny. The air bubble keeps approaching the roller body, constantly rubbing against the debris in the net hole, and continuously impacting the roller body and the ink residue and debris hidden in the depth of the net hole. The ink residue in the mesh hole is continuously shaken and shed, so as to achieve deep cleaning without damaging the mesh roller.

GW-TB-470 plate mounting machine

Features: 1. Simple, convenient and fast operation 2. Improve the productivity of the printing press. 3. High accuracy of placement, accurate registration, 4. It can reduce edge overprinting and improve printing quality. 5. Eliminate the loss of stoppage error and avoid the waste of overprinting and debugging. 6. It is suitable for all kinds of resin printing machine and flexo printing machine.

Anilox Ceramic Roller (flexo printing matching anilox roll)

Anilox roller: It is called the heart of the flexo printing machine. The depth and shape of its cells (ink storage) directly affect the quality of the printed product. Advantages of flexo printing: flexographic printing has unique flexibility, economy, and uses environmentally friendly inks, which are in line with the hygiene of food packaging prints Standard, high printing precision, rich layers and bright colors of printed matter, through the continuous improvement of technology, it will be comparable to the effect of gravure printing. Commonly used ceramic anilox roll line number reference: solid version 250-400LPI; text line version 400-600LPI; layered effect version 550-700LPI (applicable to screen 133-150) and 700-1000LPI (applicable to screen 175) line prints). Application range: carton packaging (carton pre-printing, matching corrugated roller printing); Printing of water-based labels, UV labels, flexible packaging, shopping bags, tote bags; Envelope, letterhead, notebook inner page printing; paper cups, paper food bags; napkins; trademark printing, cloth label printing, etc.

Plate Washing Machine

Double-sink ultrasonic cleaning machine

★All stainless steel shell, more upscale and durable ★The machine shell uses AIS304 stainless steel, thickness 2mm ★The machine sink uses AIS316 stainless steel, thickness 2.5mm ★ 40Khz is stable and reliable, thorough cleaning, high power cleaning effect is remarkable, can be observed with the naked eye ★The washing machine of different sizes can be customized ★Attached with roller rotating wheel, adjustable height casters, compressed air nozzle ★With heating and constant temperature system, exhaust gas exhaust interface ★ The waterproof performance is greatly improved, the product is durable and safe ★Use tap water and a small amount of professional solvent as cleaning fluid

Coating roll

Definition: Coating roll, also known as Hand Coater. The coating roller can realize a simple coating operation and is suitable for the formulation of coating films for a variety of substrates. In this way, coatings can be applied to a variety of substrates, including paper, cardboard, plastic film, foil, metal plate, Glass and wood panels, etc. According to the shape of the coating roll: the coating method is divided into smooth roll coating and mesh roll coating. Advantages: uniform coating, accurate coating amount. The coating amount of the high wire mesh roller is small, but the coating is uniform and the transparency is good; The products that can be served are: solar back sheet film, protective film, transfer film, gold and silver cardboard, ribbon, decorative background color, advertising inkjet material, laser film, etc.

Servo Type Plate Mounter

Features: 1. The lens is 150mm away from the printing roller for easy operation. 2. The left and right cameras magnify the crosshairs on the board by 50 times and display them on the monitor. 3. The display shows double crosshairs as a reference for placement, and the vertical lines of the crosshairs can be moved left and right to facilitate fine adjustment. 4. The printing roller adopts the cylinder locking position (left-right direction and circumferential direction), the operation is more convenient. 5. After the version is pasted, the printing roller can be rotated (fixed in the left and right direction) to check whether the positions of several sets of crosshairs are correct. 6. The color accuracy is more precise, the error is about 0.01MM.

Gravure roll

Definition: Micro means that the diameter of the anilox roller is relatively small, generally Φ20mm~Φ80mm; while for the traditional gravure coating method, the diameter of the conventional anilox roller is generally Φ125mm~Φ250mm. According to different processing types, it can be divided into: metal gravure roll and ceramic gravure roll;

Corrugated printing roll

Definition: Corrugated box printing refers to the most commonly used flexographic direct printing and pre-printing, gravure pre-printing processes: The anilox roller is the "heart" of the carton printing machine, which directly determines the vividness and clarity of the printed colors. As the market has higher and higher requirements for the exquisiteness of carton printing, the company has been complied with the market demand and continuously improved the quality and customer satisfaction of the anilox rollers while continuing to serve customers. Advantages: The overall printing effect is close to color printing, and the production efficiency is high.

Glazing roller

Definition: Glazing is to coat a layer of colorless transparent paint on the surface of the printed matter, after leveling, drying, calendering and curing, a thin and uniform transparent bright layer is formed on the surface of the printed matter, which can enhance the surface smoothness of the carrier and protect the printing. The craftsmanship of the finishing processing function of the graphic. Advantages: It can improve the appearance of the product, the film layer has better environmental resistance, and has wide adaptability for post-press processing.

Seamless glue roller / flexo

In the printing industry, there are many occasions that require printed products to have no beginning and end (such as wallpaper, flooring, candy paper and napkins, etc.), and they all need to be endless. In this way, our plates are required to be seamless, the printing is coherent, the packaging will be easier to operate, and the visual effect will be better. In the past, gravure printing was usually used to achieve this requirement, because the production process of traditional flexo plates made it difficult to achieve this goal. Seamless flexo printing, continuous printing like gravure printing.
