Features: 1. Simple, convenient and fast operation 2. Improve the productivity of the printing press. 3. High accuracy of placement, accurate registration, 4. It can reduce edge overprinting and improve printing quality. 5. Eliminate the loss of stoppage error and avoid the waste of overprinting and debugging. 6. It is suitable for all kinds of resin printing machine and flexo printing machine.

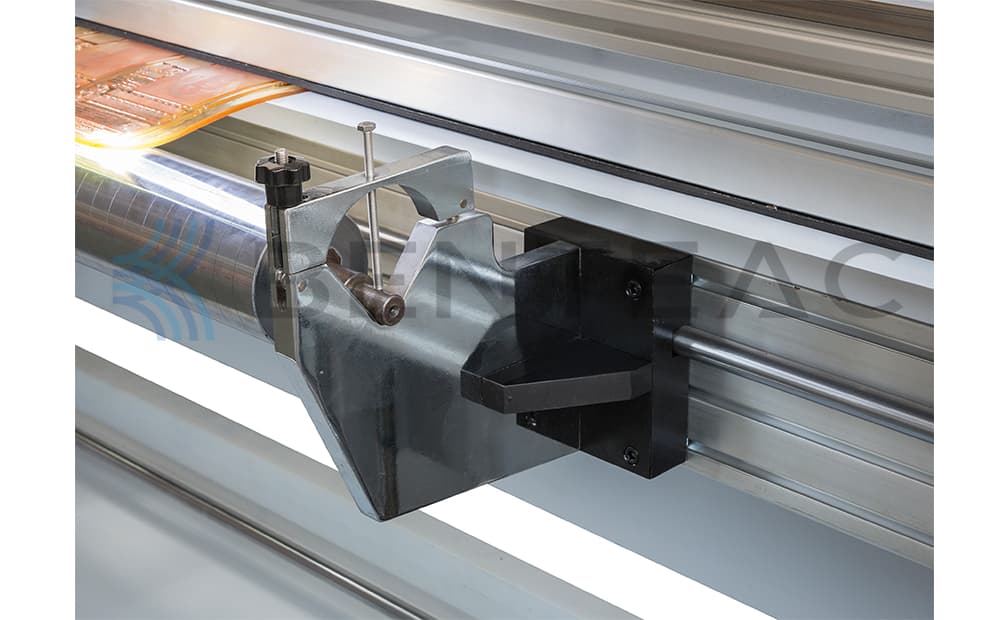

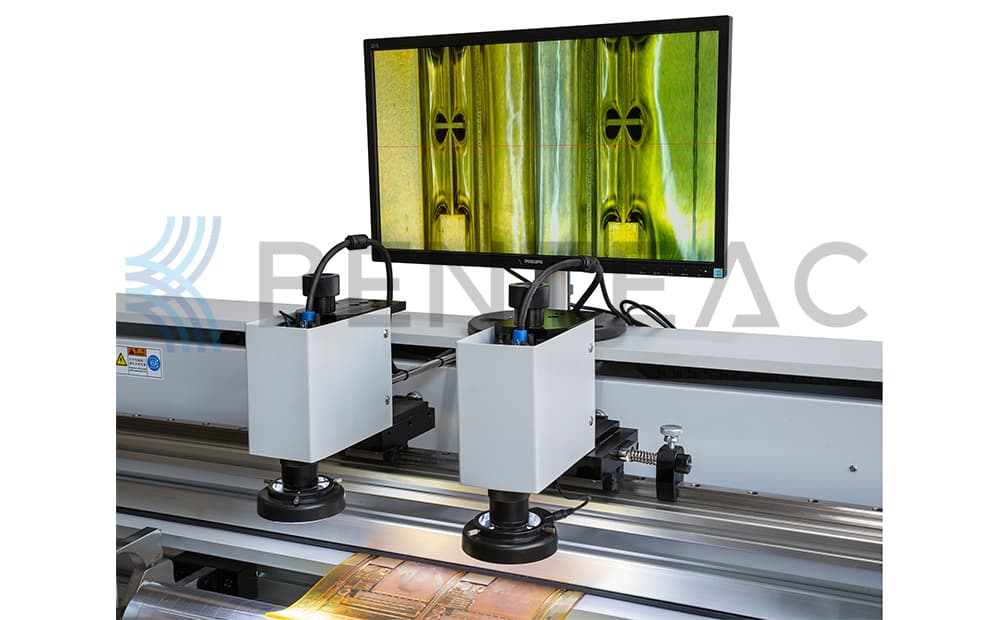

Features: 1. The lens is 150mm away from the printing roller for easy operation. 2. The left and right cameras magnify the crosshairs on the board by 50 times and display them on the monitor. 3. The display shows double crosshairs as a reference for placement, and the vertical lines of the crosshairs can be moved left and right to facilitate fine adjustment. 4. The printing roller adopts the cylinder locking position (left-right direction and circumferential direction), the operation is more convenient. 5. After the version is pasted, the printing roller can be rotated (fixed in the left and right direction) to check whether the positions of several sets of crosshairs are correct. 6. The color accuracy is more precise, the error is about 0.01MM.

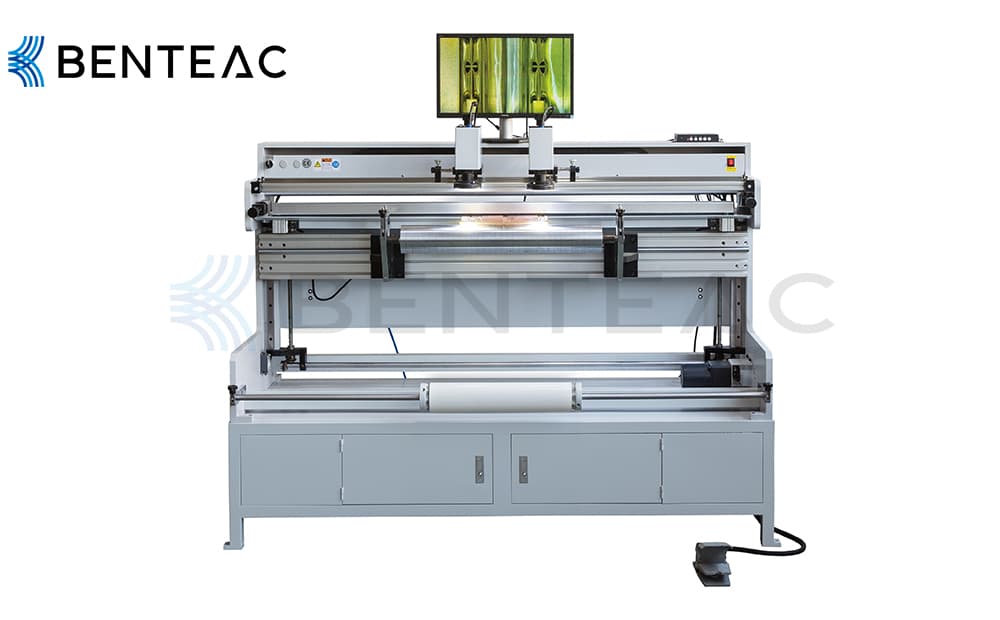

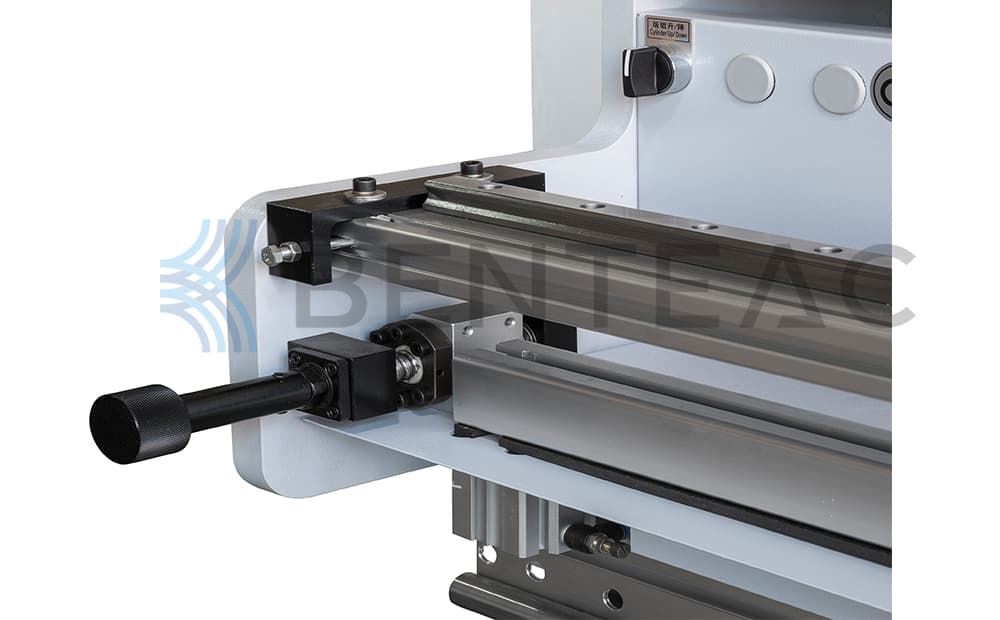

1. It adopts a precision screw mechanism that can be adjusted up and down, Japan Seiko brand advanced zoom lens, cameras on both sides, high-definition LCD monitor display. 2. Precise linear guide, the motor drives the ball screw to position left and right. After aligning the printing plate, the cylinder locks the printing plate to ensure the accuracy of the placement. 3. The camera can be adjusted in all directions, the degree of parallelism can be adjusted, the precision of the placement is high, and the color registration is accurate. 4. Sleeve-type plate mounting can be carried out. 5. Fast paste version, convenient operation and greatly improved work efficiency. 6. It is suitable for letterpress printing such as flexo printing and resin printing
