Label die-cutting has experienced three kinds of die-cutting technologies traditional die-cutting, digital die-cutting and laser die-cutting Traditional die-cutting technology is mature, fast and widely used, but the shortage of traditional die -cutting machine needs knife template, which is difficult. to adapt to today's rapidly changing social development. With the innovation and application of technology and the continuous improvement of people's living standards, people's quality of life requirements, personalized customization is increasing. In this demand, we have developed a unique flatbed multi-blade digital label die cutting machine after many efforts in many years, whose technology was combined with the characteristics of other industries.
Product Overview:
Digital label die-Cuter system collected laminating,die-cutting.slitting and rewinding on one. It is the best solution for label finishing system.
Technical Parameter:
|
Max.Unwinding dia. |
O.D diam 500mm |
Slitting speed |
Max 100m per min |
|
Max.Roller max-width='100%' width: |
40-350mm |
Siting width |
10-330mm |
|
Max.label width: |
350mm |
Sing precision |
0.1mm |
|
Min label length |
10mm
|
Machine size |
2.4*1.8*1.6m |
|
Max label length |
400mm |
Machine weight: |
About 800Kg |
|
Cutting speed |
6m/min (depend on label shape and size) |
power: |
110-127VAC 50-60HZ, 1000WATTS 220-240VAC 50-60HZ, 1000WATTS |
|
Cutting blades |
2pcs (standard) max. 4 pcs (optional) |
Warranty |
1year (besides high consumable parts) |
|
Slitting blades |
4pcs (standard) max. 15 pcs (optional) |
Data onneciviy: |
USB 2.0/Ehemel 10/100Base-T/GPlO |
|
Cutting tracking |
singe mark |
Optional |
Cutting head Siting unit Film back liner removal Sheet paper cutter
|
|
Die cutting technology |
With tungsten steel rotary blades |
||
|
Curling precision |
0.1mm (duplicate) |

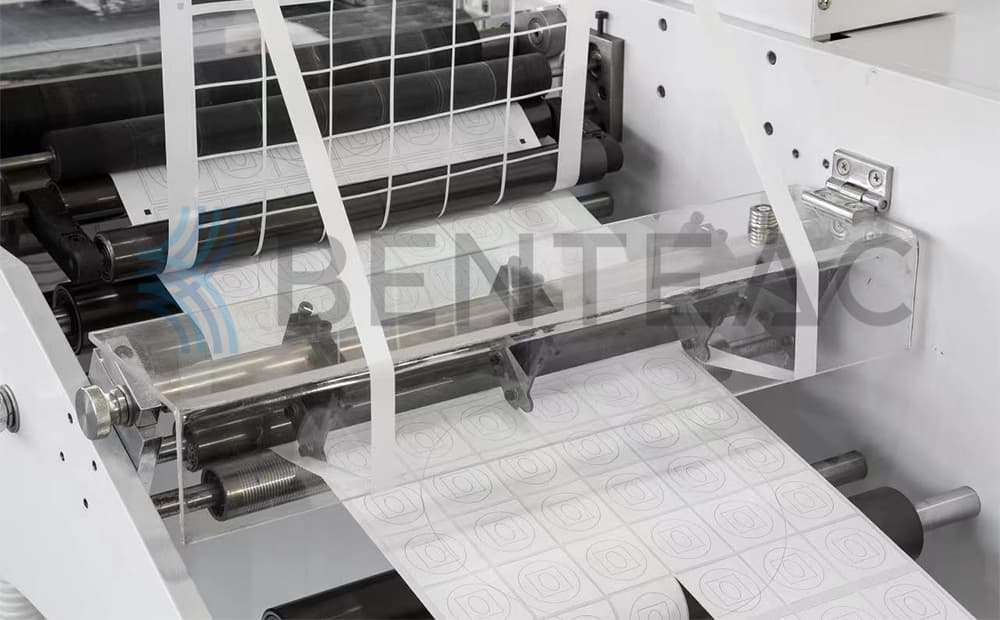

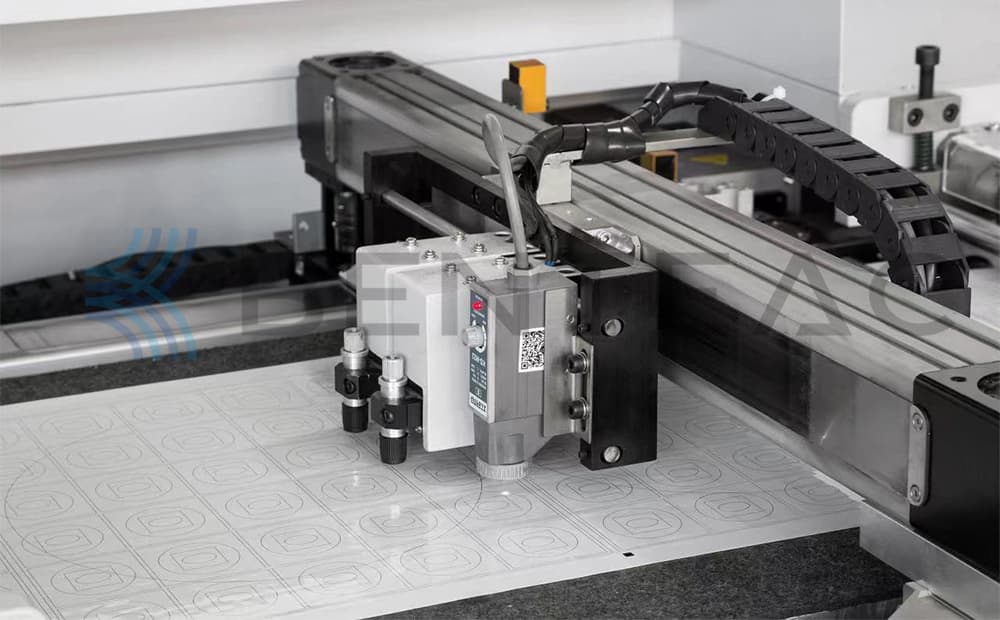

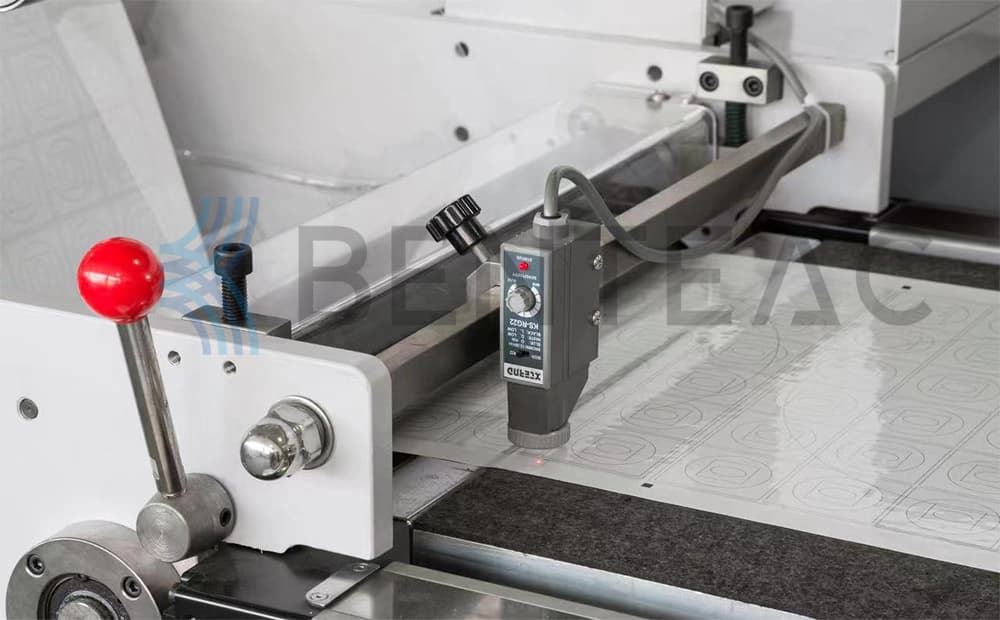

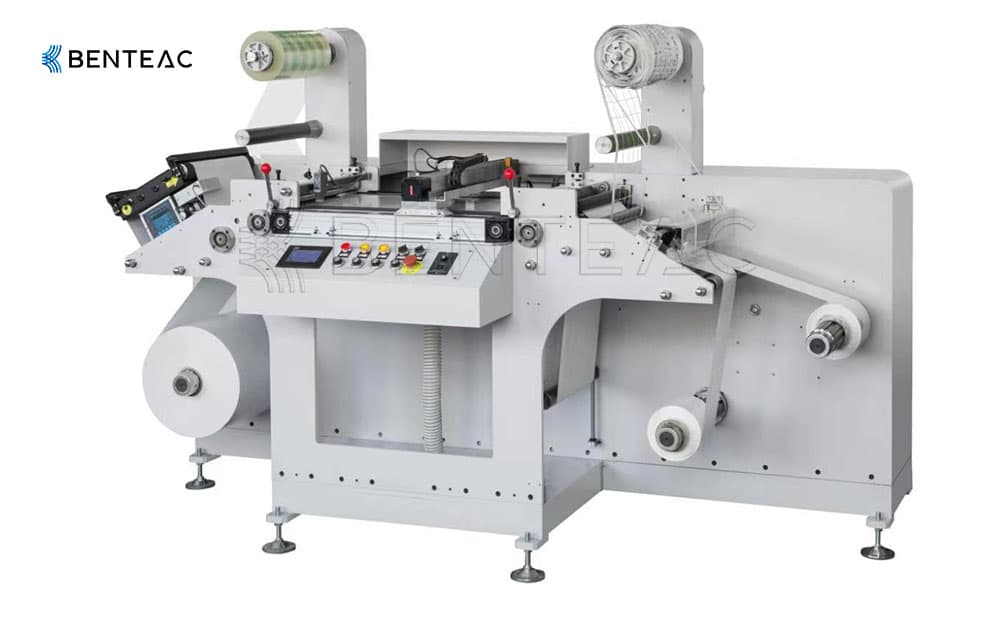

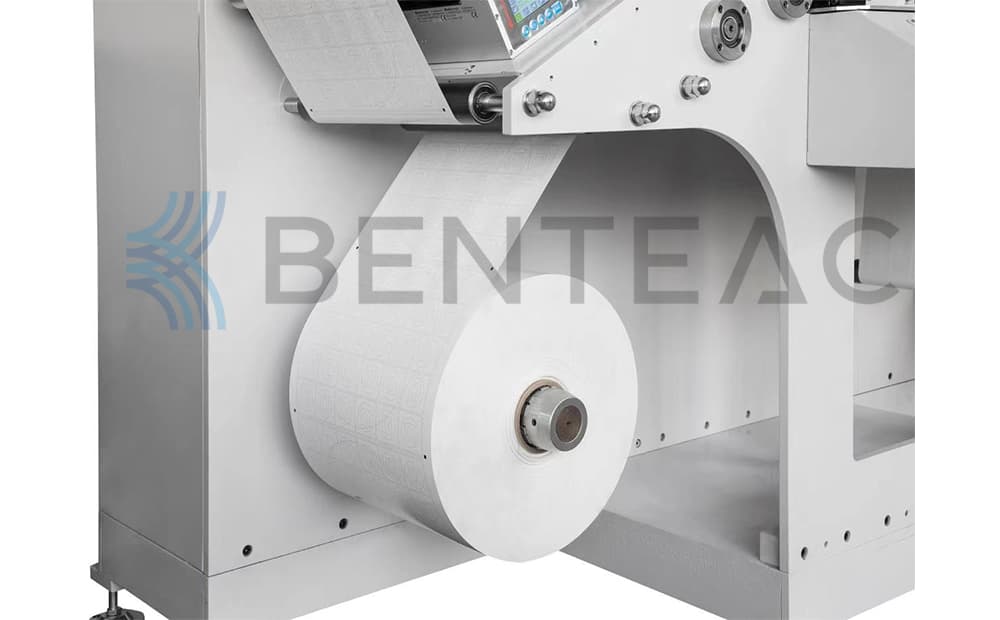

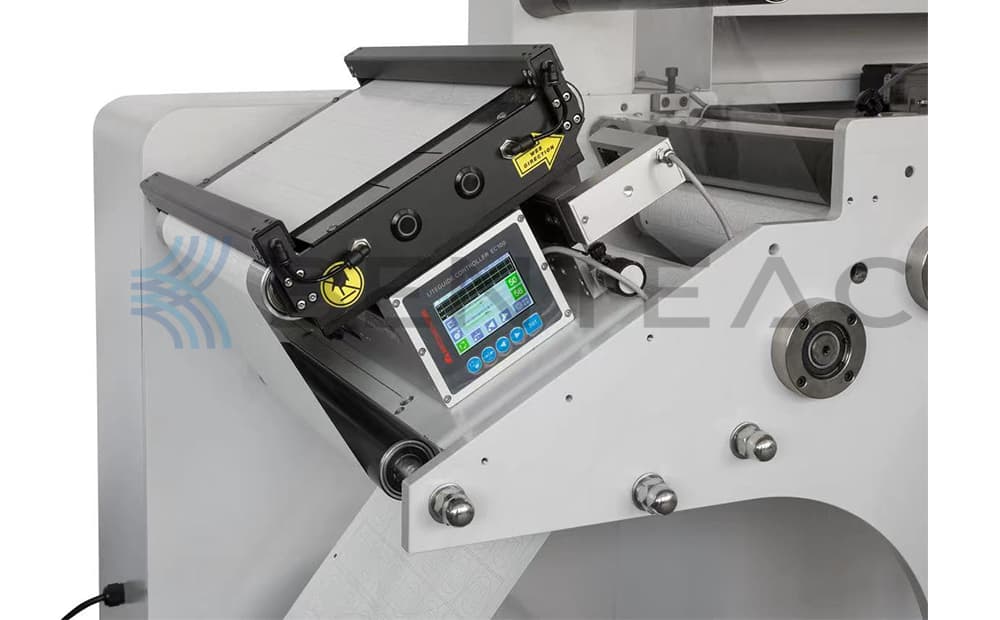

Machine Detail Pictures:
Delivery Packaging:
