Features:
The anilox roller cleaning machine is equipped with a stepless speed drive, which allows the anilox roller to be cleaned to rotate in a washing tank that emits high-frequency signals. The vibration from the high-frequency signal and the continuous rotation of the roller body make the liquid tiny. The air bubble keeps approaching the roller body, constantly rubbing against the debris in the net hole, and continuously impacting the roller body and the ink residue and debris hidden in the depth of the net hole. The ink residue in the mesh hole is continuously shaken and shed, so as to achieve deep cleaning without damaging the mesh roller.
Features:
The anilox roller cleaning machine is equipped with a stepless speed drive, which allows the anilox roller to be cleaned to rotate in a washing tank that emits high-frequency signals. The vibration from the high-frequency signal and the continuous rotation of the roller body make the liquid tiny. The air bubble keeps approaching the roller body, constantly rubbing against the debris in the net hole, and continuously impacting the roller body and the ink residue and debris hidden in the depth of the net hole. The ink residue in the mesh hole is continuously shaken and shed, so as to achieve deep cleaning without damaging the mesh roller.
Main Technical Variables
|
Model |
Vibrator Num |
Ultrasonic Power （w） |
Ultrasonic Frequency（khz） |
HeatPower（w） |
Washing Num（Pcs） |
RollerLength（mm） |
Tempeture （℃） |
Power （v） |
|
GW-QX-320 |
16 |
960 |
40 |
1000 |
2 |
0-350 |
20-100 |
220 |
|
GW-QX-450 |
18 |
1080 |
40 |
1000 |
2 |
0-450 |
20-100 |
220 |
|
GW-QX-650 |
24 |
1440 |
40 |
1000 |
2 |
0-660 |
20-100 |
220 |
|
GW-QX-850 |
27 |
1620 |
40 |
2000 |
2 |
0-860 |
20-100 |
220 |
|
GW-QX-1000 |
33 |
1980 |
40 |
2000 |
2 |
0-1060 |
20-100 |
220 |
|
GW-QX-1200 |
39 |
2340 |
40 |
2000 |
2 |
0-1280 |
20-100 |
220 |
|
GW-QX-1300 |
42 |
2520 |
40 |
2000 |
2 |
0-1360 |
20-100 |
220 |
|
GW-QX-1500 |
48 |
28800 |
40 |
3000 |
2 |
0-1560 |
20-100 |
220 |
|
GW-QX-1800 |
60 |
3600 |
40 |
3000 |
2 |
0-1860 |
20-100 |
220 |
Special order with special size

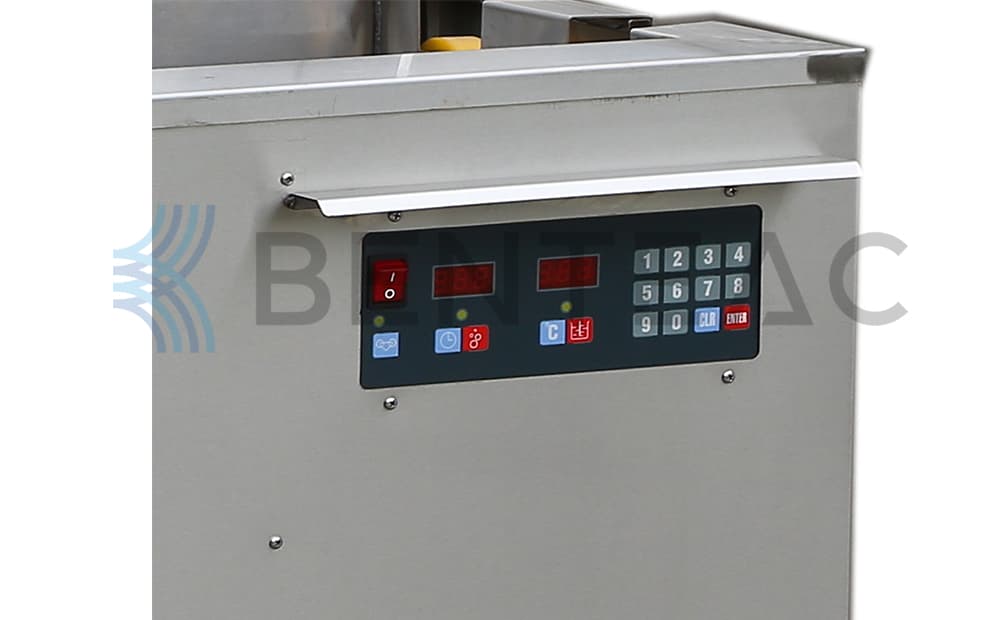

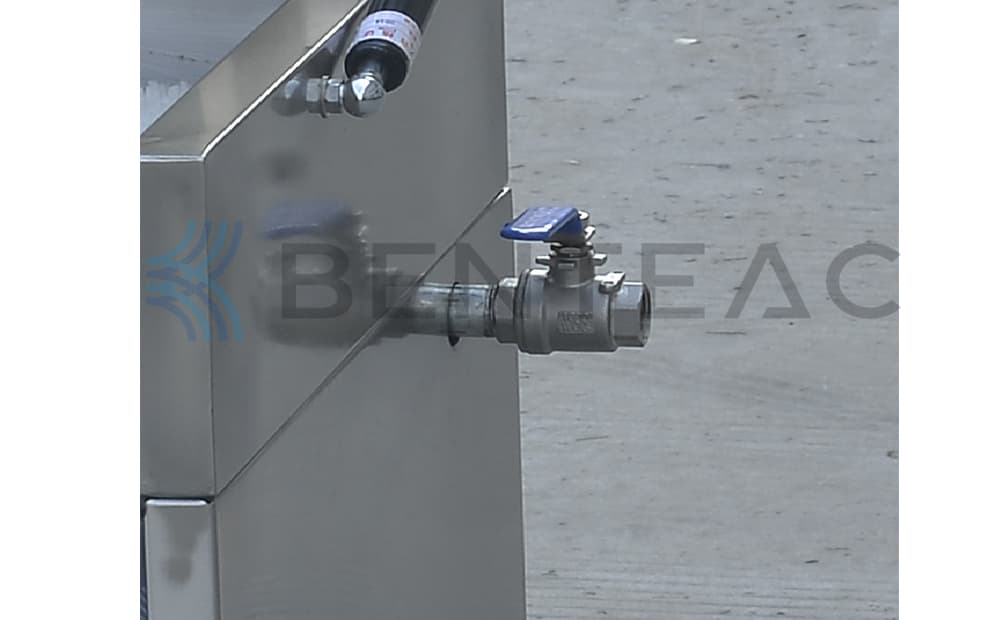

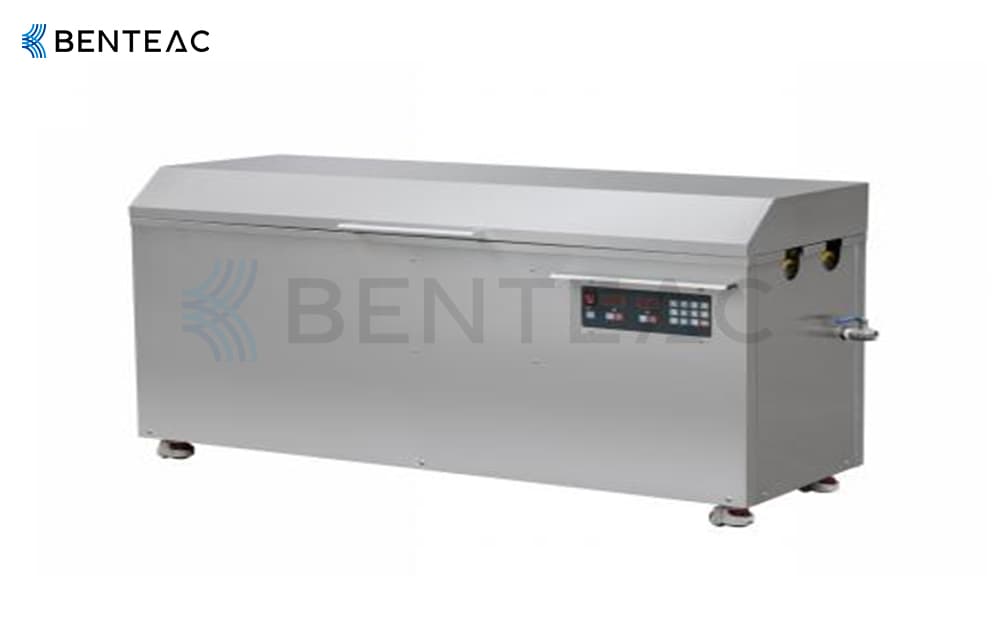

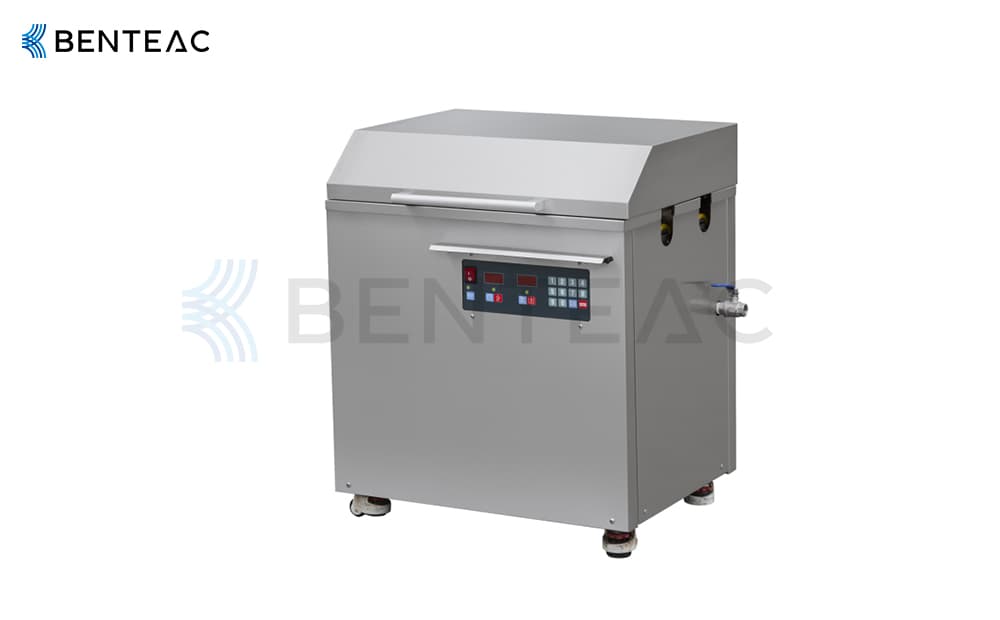

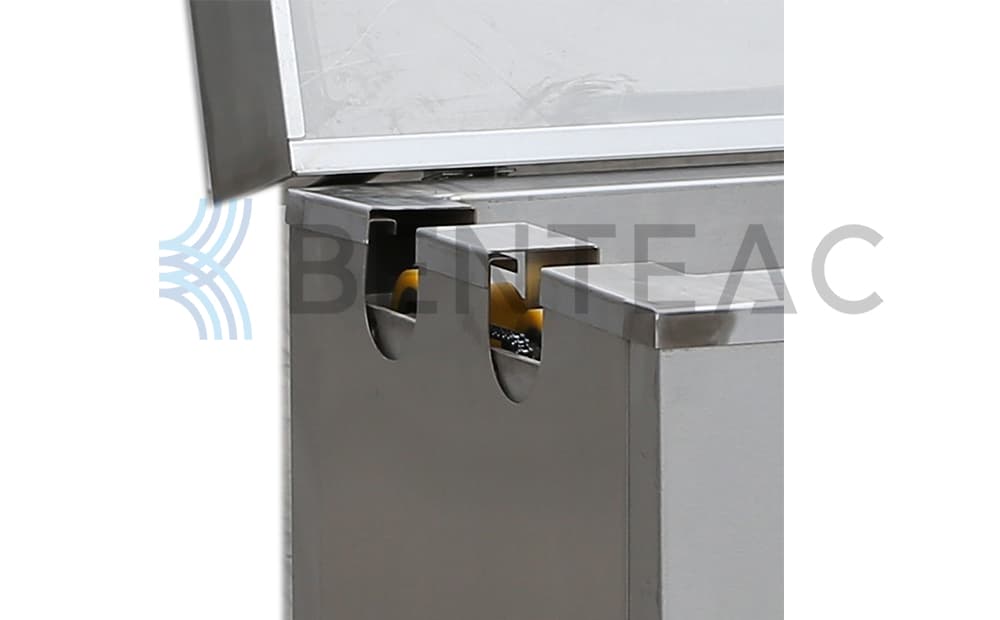

Machine Detail Pictures:
Delivery Packaging:
★All stainless steel shell, more upscale and durable ★The machine shell uses AIS304 stainless steel, thickness 2mm ★The machine sink uses AIS316 stainless steel, thickness 2.5mm ★ 40Khz is stable and reliable, thorough cleaning, high power cleaning effect is remarkable, can be observed with the naked eye ★The washing machine of different sizes can be customized ★Attached with roller rotating wheel, adjustable height casters, compressed air nozzle ★With heating and constant temperature system, exhaust gas exhaust interface ★ The waterproof performance is greatly improved, the product is durable and safe ★Use tap water and a small amount of professional solvent as cleaning fluid
Features: The anilox roller cleaning machine is equipped with a stepless speed drive, which allows the anilox roller to be cleaned to rotate in a washing tank that emits high-frequency signals. The vibration from the high-frequency signal and the continuous rotation of the roller body make the liquid tiny. The air bubble keeps approaching the roller body, constantly rubbing against the debris in the net hole, and continuously impacting the roller body and the ink residue and debris hidden in the depth of the net hole. The ink residue in the mesh hole is continuously shaken and shed, so as to achieve deep cleaning without damaging the mesh roller.
